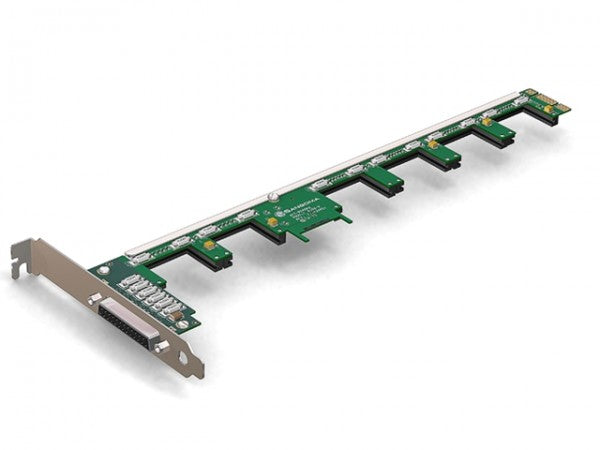

Sangoma Remora Additional A400

Sangoma Remora™ A400RA: Expandable Analog Voice Card up 24 Ports.

The A400 Series of analog voice cards deliver superior audio quality in a 2U card that expands from two to twenty-four ports using a single interface slot.

Add a additional Remora™ card to A400 and connect backplane. Ensures common synchronous clocking for all channels.

Like all the cards in the award-winning Sangoma AFT Series Product Line, the A400 and Remora™ system's architecture is shared with Sangoma's A101, A102, A104, A108 and A200 cards, ensuring common 3.3 V or 5 V, high performance, universal PCI or PCI Express compatibility, and crash-proof field upgradable firmware to take advantage of enhancements, as they become available.

Features

• 12 ports supported, mixing FXO and FXS (interfaces as required).
• Support for the Asterisk®, Yate™, FreeSwitch™, CallWeaver, and OPAL™ PBX/IVR projects, as well as other open source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
• Connects to punch block using the included standard 12-line colour coded telephone cable. Or choose the optional Amphenol-Y cable that connects up to 24 lines to a telephone patch panel, sold separately.
• Dimensions: 2U Form factor: 290 mm x 55 mm for use in a 2U chassis.
• Auto-tuning — no adjustments are necessary, just install and it works.
• G.168-2004 Compliant.
• Tone Transparency for DTMF detection.
• Handles Double Talk.
• Low memory and processing footprints relative to quality. For more than six channels, the A200D with Hardware Echo Canceller is recommended.
